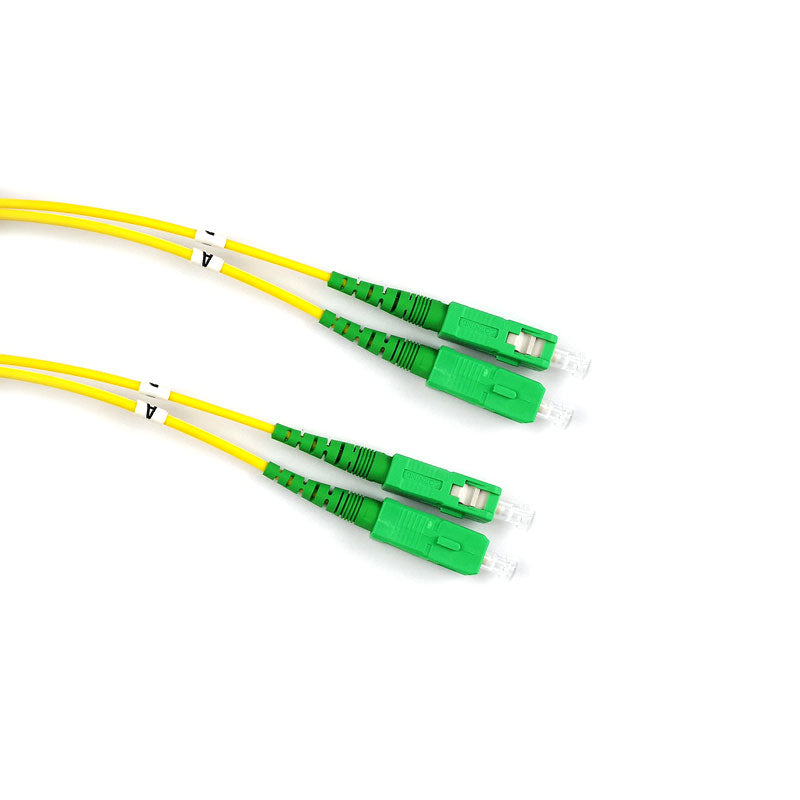

(3m) SC/APC - SC/APC Single Mode Fiber Optic Duplex Patch Cord - 2mm LSZH

$47.00

Specifications General Specifications Application: Vertical Riser, General Building Applications Cable Type: Tight-Buffered Flame Rating: LSZH Cable Assembly Type: Two Fiber Fiber Category: Bend-improved SM (OS2) Design - Connector A Connector Type: SC APC Ferrule Material: Ceramic...

SKU: 444402R5Z20003MCategories: Fiber Optic, Fiber Optic Cables, Promotion
Description

Specifications

General Specifications

  • Application: Vertical Riser, General Building Applications
  • Cable Type: Tight-Buffered
  • Flame Rating: LSZH
  • Cable Assembly Type: Two Fiber
  • Fiber Category: Bend-improved SM (OS2)

Design - Connector A

  • Connector Type: SC APC
  • Ferrule Material: Ceramic

Design - Connector A

  • Housing Material: Composite
  • Housing Color: Green
  • Boot Color: Green

Optical Specifications - Connector A

  • Polish: APC
  • Reflectance, Typical: ≤ -75 dB
  • Insertion Loss, Typical: 0.15 dB

Design - Connector B

  • Connector Type: SC APC
  • Ferrule Material: Ceramic
  • Housing Material: Composite
  • Housing Color: Green
  • Boot Color: Green

Optical Specifications - Connector B

  • Polish: APC
  • Reflectance, Typical: ≤ -75 dB
  • Insertion Loss, Typical: 0.15 dB
Cable Design
  • Fiber Count: 2
  • Outer Jacket Color: Yellow

Mechanical Characteristics Cable

  • Nominal Outer Diameter: 4 mm (0.16 in)

Furcation - Connector A

  • Plug Type: Heat-shrink sleeve
  • Plug Dimensions: 25.4 x 3.5 x 5.5 mm (1 x 0.14 x 0.22 in)
  • Leg Diameter: 2 mm
  • Leg Length: 254 mm (+38.1 mm/-0 mm) (10 in (+1.5 in/-0 in))

Furcation - Connector B

  • Plug Type: Heat-shrink sleeve
  • Plug Dimensions: 25.4 x 3.5 x 5.5 mm (1 x 0.14 x 0.22 in)
  • Leg Diameter: 2 mm
  • Leg Length: 254 mm (+38.1 mm/-0 mm) (10 in (+1.5 in/-0 in))

Chemical Characteristics

  • RoHS: Free of hazardous substances according to RoHS 2011/65/EU
