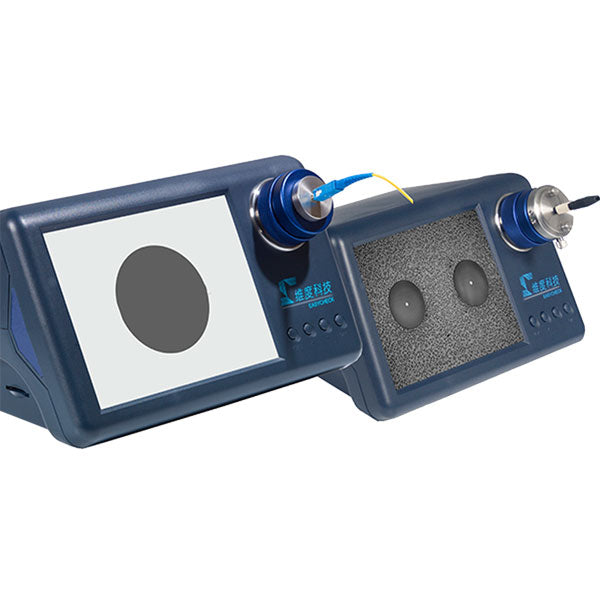

EasyCheck Integrated Fiber End-face Visual Inspector (Inspection Scope)

$1,064.00$1,134.00

[ Plug Type Will Be Based On Country. Please Leave A Note At Checkout For Your Plug Type Requirements If Your Requirement is Different. ] [Purchase Additional Adaptors]   EasyCheck is an integrated fiber endface...

80x80x
200x200x
400x400x
$1,064.00
Description

[ Lead Time May Be Up To 3 Weeks ]

[ Plug Type Will Be Based On Country. Please Leave A Note At Checkout For Your Plug Type Requirements If Your Requirement is Different. ]

[Purchase Additional Adaptors]



EasyCheck is an integrated fiber endface inspector developed by Dimension Technology; it combines optical microscope and monitor in a body other than separate designs. It has clear image and long life time. Equipped with series of adaptors, EasyCheck can inspect every kind of optical connectors.

Main features

  • Integrated design
  • Encircled focus design
  • Dust-proof design
  • Humane safety design
  • Magnification option: 80X, 200X, 400X
  • Workable with Easyget portable inspector

Integrated Design

EasyCheck has a compact size due to the integrated design and saves working space. It is a great breakthrough compared with other tradi- tional fiber optic endface inspectors of separate structure, and can get rid of the annoying cables between monitor and microscope.

Excellent Image Quality - High Definition Images

With coaxial illumination optical magnify system, Easycheck can easily find the slight defects on fiber endface. High resolution image sensor and 8〞pure black-and-white digital TFT LCD can show the most truly details of fiber endface.

Dimension Easycheck - 2 - Excellent image quality

Image Input & Output and Storage Function

Easycheck provides video input and output functions to fulfill the various demand of customers. The Easycheck is able to connect to Easyget portable inspector and make it very easy to test various female types of connectors.


Easycheck also has image capture function, it can capture the image of the endface and save it in SD card provided with Easycheck. The image capture function offers a great help in manufacturing and quality controlling.

Dimension Easycheck - 3 - Image input & output and storage function

Multiple Products Inspection

Easycheck has many types of adaptors, and it is able to check all kinds of fiber connectors(including MPO/MTP, MT-RJ connector), Optical Transceiver Module(including 40G -100G MPO Module, SFP, XFP, QSFP), TOSA/ROSA components and so on.

Purchase Additional Adaptors

Dimension Easycheck - 4 - Multiple products inspection

EasyCheck can check connectors、 modules(TOSA、ROSA), and the adjustable version can check  multi-fiber connectors.

Options

Easycheck - Adaptor Options

Remark: Tosa/Rosa and female(transceivers)checking, the maximum magnification times is 200X; single fiber/MPO checking, the maximum magnification times is 400X.

Easycheck has two types: X,Y Axis Adjustable (4mmx4mm sight distance, for multi-fiber connectors and module inspection) and Non-adjustable; For different adaptors: Ferrules, Modules (TOSA, ROSA, BOSA for single fiber inspection) and transceiver modules (SFP, QSFP, SEF, XFP).


Specifications

Item
Parameters
Magnification
80X, 200X or 400X
Output Format
Analog PAL
CCD Resolution
1/3” 625 Line CCD
Input Signal
RCA
Output Signal
RCA
Focus
Manual
Power Consumption
3W
Work Temperature
+10~55℃
Storage Temperature
0~55℃
Easyget input
Yes
Monitor
8” TFT 800*600
Power Supply
DC 12V
Volume
270*245*155mm
Weight
1.6kg



Resolution

Model  Easycheck 080 Easycheck 200 Easycheck 400
Display size of 125um fiber at 8″ monitor Φ16mm Φ40mm Φ80mm
Range of sight at 8″ monitor 937.5~1250um 375~500um 180~250um
Resolution 2.7um 1.1um 0.7um


Additional Information
Magnification

80x, 200x, 400x
