Specifications

General Specifications

• Flame Rating: LSZH™/FRNC
• Cable Assembly Type: Two Fiber
• Fiber Category: Single-mode (OS2)

Temperature Range

• Operation: -20 °C to 60 °C
• Installation: -5 °C to 50 °C
• Storage: -25 °C to 70 °C

Design - Connector A

• Connector Type: LC duplex
• Ferrule Material: Ceramic
• Polish: UPC
• Housing Material: Composite
• Housing Color: Blue
• Boot Type: Individual
• Boot Color: Blue / White
• Keyed (security): No

Mechanical Specifications - Connector A

• Durability: ≤ 0.2 dB 500 rematings, FOTP-21
• Tensile Strength Jacketed Cable: 44 N

• Insertion Loss, Typical: 0.1 dB
• Insertion Loss, Max: 0.3 dB
• Reflectance, Typical: ≤ -58 dB

Design - Connector B

• Connector Type: LC duplex
• Ferrule Material: Ceramic
• Polish: APC
• Housing Material: Composite
• Housing Color: Blue
• Boot Type: Individual
• Boot Color: Blue / White
• Keyed (security): No

Mechanical Specifications - Connector B

• Durability: ≤ 0.2 dB 500 rematings, FOTP-21
• Tensile Strength Jacketed Cable: 44 N

Optical Specifications - Connector B

• Insertion Loss, Typical: 0.1 dB
• Insertion Loss, Max.: 0.3 dB
• Reflectance, Typical: ≤ -58 dB

Cable Design

• Fiber Count: 2
• Outer Diameter: 2 mm 4.1 mm
• Outer Jacket Color: Yellow
• Outer Jacket Material: LSZH™/FRNC
• Minimum Bend Radius: 30 mm
• Crush Resistance: 1000 N/10 cm
• Tensile Strength: 300 N

Chemical Characteristics

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU

Ordering Information

• Part Number: 042202R5Z20008M

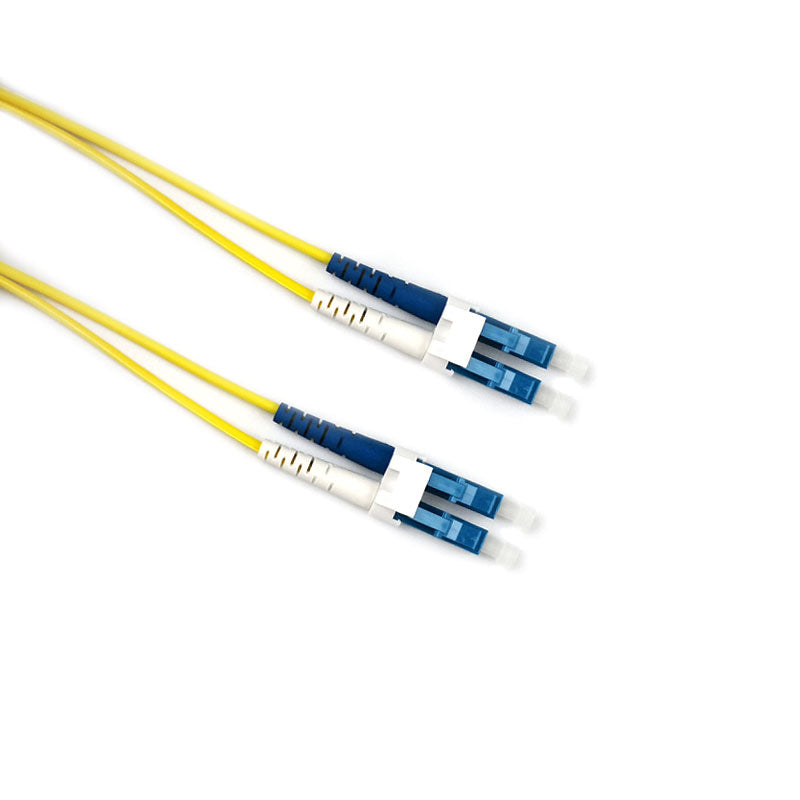

• Product Description: LC Duplex to LC Duplex patch cord on 2-fiber Zipcord cable, with 2 mm legs, and a low-smoke, zero-halogen sheath. Length is variable.
• EAN Code:
• Length: 8 m
• Weight:
