Specifications

General Specifications

• Application: Vertical Riser, General Building Applications
• Cable Type: Tight-Buffered
• Flame Rating: Riser (OFNR)

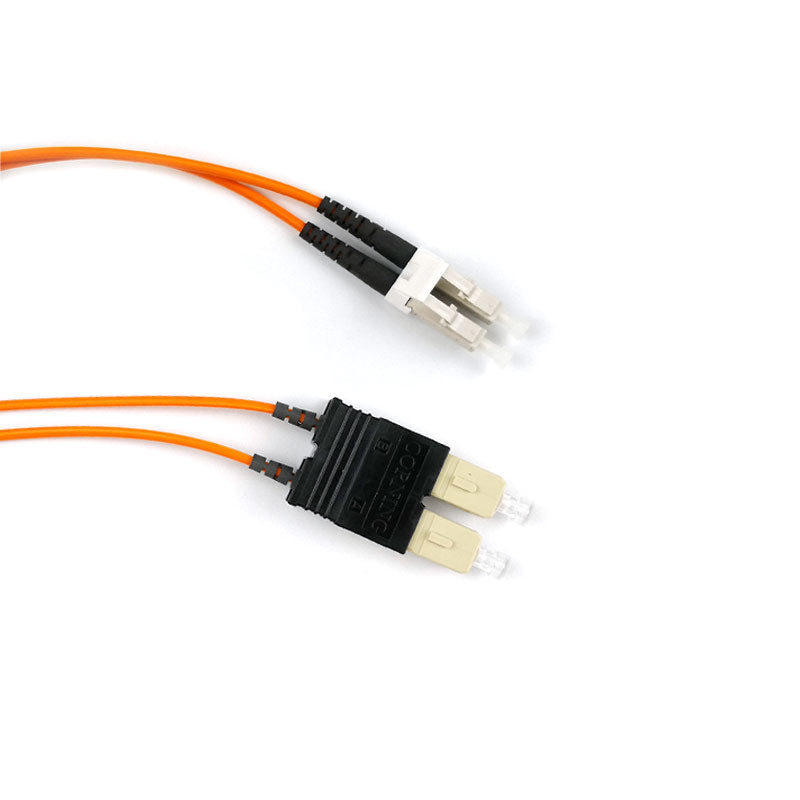

• Cable Assembly Type: Two Fiber
• Fiber Category: 62.5 µm MM (OM1)

Design - Connector A

• Connector Type: LC duplex
• Ferrule Material: Ceramic
• Housing Material: Composite
• Housing Color: Beige
• Boot Color: Black

Optical Specifications - Connector A

• Insertion Loss, Typical: 0.35 dB

Design - Connector B

• Connector Type: SC duplex
• Ferrule Material: Ceramic
• Housing Material: Composite
• Housing Color: Beige
• Boot Color: Black

Optical Specifications - Connector B

• Insertion Loss, Typical: 0.35 dB

Cable Design

• Fiber Count: 2
• Outer Jacket Color: Orange

Mechanical Characteristics Cable

• Nominal Outer Diameter: 4 mm (0.16 in)

Furcation - Connector A

• Plug Type: Heat-shrink sleeve
• Plug Dimensions: 25.4 x 3.5 x 5.5 mm (1 x 0.14 x 0.22 in)
• Leg Diameter: 2 mm
• Leg Length: 10 in (+1.5 in/-0 in) (254 mm (+38.1 mm/-0 mm))

Furcation - Connector B

• Plug Type: Heat-shrink sleeve
• Plug Dimensions: 25.4 x 3.5 x 5.5 mm (1 x 0.14 x 0.22 in)
• Leg Diameter: 2 mm
• Leg Length: 10 in (+1.5 in/-0 in) (254 mm (+38.1 mm/-0 mm))

Chemical Characteristics

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU

Fiber Specifications

• Optical Characteristics (cabled)
• Fiber Type: Multimode
• Fiber Core Diameter: 62.5 µm
• Fiber Category: OM1
• Fiber Code: K
• Performance Option Code: 30
• Wavelengths: 850 nm / 1300 nm
• Maximum Attenuation: 3.4 dB/km / 1.0 dB/km
• Serial 1 Gigabit Ethernet: 300 m / 550 m
• Serial 10 Gigabit Ethernet: 33 m / -
• Min. Overfilled Launch (OFL) Bandwidth: 200 MHz*km / 500 MHz*km
• Minimum Effective Modal Bandwidth (EMB): 220 MHz*km / -
