Specifications

General Specifications

• Flame Rating: LSZH™/FRNC
• Cable Assembly Type: Two Fiber
• Fiber Category: 50 µm MM (OM3)

Temperature Range

• Operation: -20 °C to 60 °C
• Installation: -5 °C to 50 °C
• Storage: -25 °C to 70 °C

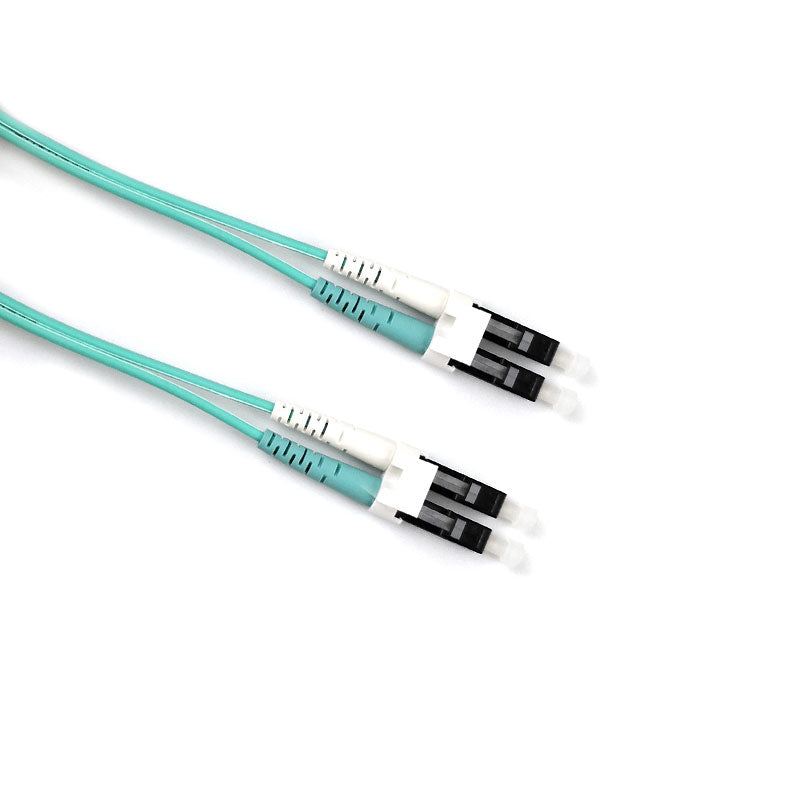

Design - Connector A

• Connector Type: LC duplex
• Ferrule Material: Ceramic
• Polish: PC
• Housing Material: Composite
• Housing Color: Black
• Boot Type: Individual
• Boot Color: Aqua / White
• Keyed (security): No

Mechanical Specifications - Connector A

• Durability: ≤ 0.2 dB 500 rematings, FOTP-21
• Tensile Strength Jacketed Cable: 44 N

Optical Specifications - Connector A

• Insertion Loss, Typical 0.35 dB
• Insertion Loss, Max. 0.5 dB

Design - Connector B

• Connector Type: LC duplex
• Ferrule Material: Ceramic
• Polish: PC
• Housing Material: Composite
• Housing Color: Black
• Boot Type: Individual
• Boot Color: Aqua / White
• Keyed (security): No

Mechanical Specifications - Connector B

• Durability ≤ 0.2 dB 500 rematings, FOTP-21
• Tensile Strength Jacketed Cable: 44 N

Optical Specifications - Connector B

• Insertion Loss, Typical: 0.35 dB
• Insertion Loss, Max.: 0.5 dB

Cable Design

• Fiber Count: 2
• Outer Diameter: 2 mm x 4.1 mm
• Outer Jacket Color: Aqua
• Outer Jacket Material: LSZH™/FRNC
• Minimum Bend Radius: 30 mm
• Crush Resistance: 1000 N/10 cm
• Tensile Strength 300 N

Chemical Characteristics

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
