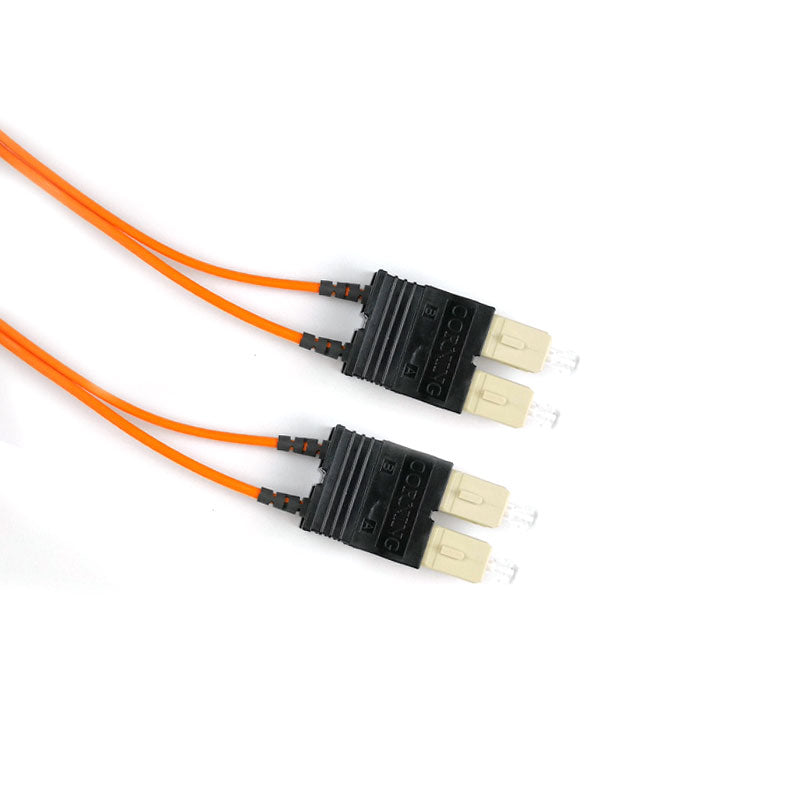

(3m) SC/UPC - SC/UPC Multimode OM1 Fiber Optic Duplex Patch Cord - 2mm LSZH

$50.00

Specifications General Specifications Application: Vertical Riser, General Building Applications Cable TypeTight-Buffered Flame Rating: LSZH Cable Assembly Type: Two Fiber Fiber Category 62.5 µm MM (OM1) Design - Connector A Connector Type: SC duplex Ferrule Material: Ceramic...

SKU: 575702K5Z20003MCategories: Fiber Optic, Fiber Optic Cables, Promotion
Description

Specifications

General Specifications

  • Application: Vertical Riser, General Building
  • Applications Cable TypeTight-Buffered
  • Flame Rating: LSZH
  • Cable Assembly Type: Two Fiber
  • Fiber Category 62.5 µm MM (OM1)

Design - Connector A

  • Connector Type: SC duplex
  • Ferrule Material: Ceramic

Design - Connector A

  • Housing Material: Composite
  • Housing Color: Beige
  • Boot Color: Black

Optical Specifications - Connector A

  • Insertion Loss, Typical: 0.35 dB

Design - Connector B

  • Connector Type: SC duplex
  • Ferrule Material: Ceramic
  • Housing Material: Composite
  • Housing Color: Beige
  • Boot Color: Black

Optical Specifications - Connector B

  • Insertion Loss, Typical: 0.35 dB

Cable Design

  • Fiber Count: 2
  • Outer Jacket Color: Orange

Mechanical Characteristics Cable

  • Nominal Outer Diameter: 4 mm (0.16 in)

Furcation - Connector A

  • Plug Type: Heat-shrink sleeve
  • Plug Dimensions: 25.4 x 3.5 x 5.5 mm (1 x 0.14 x 0.22 in)
  • Leg Diameter: 2 mm
  • Leg Length: 254 mm (+38.1 mm/-0 mm) (10 in (+1.5 in/-0 in))

Furcation - Connector B

  • Plug Type: Heat-shrink sleeve
  • Plug Dimensions: 25.4 x 3.5 x 5.5 mm (1 x 0.14 x 0.22 in)
  • Leg Diameter: 2 mm
  • Leg Length: 254 mm (+38.1 mm/-0 mm) (10 in (+1.5 in/-0 in))

Chemical Characteristics

  • RoHS: Free of hazardous substances according to RoHS 2011/65/EU

Fiber Specifications

Optical Characteristics (cabled)
  • Fiber Type: Multimode
  • Fiber Core Diameter: 62.5 µm
  • Fiber Category: OM1
  • Fiber Code: K
  • Performance Option Code: 30
  • Wavelengths: 850 nm / 1300 nm
  • Maximum Attenuation: 3.4 dB/km / 1.0 dB/km
  • Serial 1 Gigabit Ethernet: 300 m / 550 m
  • Serial 10 Gigabit Ethernet: 33 m / -
  • Min. Overfilled Launch (OFL) Bandwidth: 200 MHz*km / 500 MHz*km
  • Minimum Effective Modal Bandwidth (EMB): 220 MHz*km / -
